ER20-800-SR

ER20-800-SR

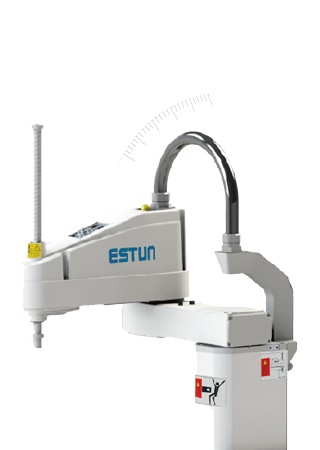

Lightweight SCARA series robot
  • Wingspan800mm
  • RepeatabilityJ1+J2/+0.02mm J3/+0.01mm J4/+0.01°
  • Maximum load20KG
  • Installtion wayground
  • Weight47KG
  • Protection levelIP20
  • Number of axes4 axes
Inquire this product

Download link

large inertia
higher accuracy
Rich interfaces
multi-modal programming

information overview

Wingspan：800mm
Repeatability：J1+J2/+0.02mmJ3/+0.01mmJ4/+0.01°
Maximum load：20KG
Weight：47KG
Installtion way：ground
Protection level: IP20
Number of axes: 4 axes

Technical Parameters

Action range
1axes ±132°2axes ±152°3axes 0 ~ 420mm 4axes ±360°
Maximum speed
1axes 337°/s2axes 540°/s3axes 1120mm/s4axes 1800°/ssynthesis speed 8945mm/s
*
*
*
