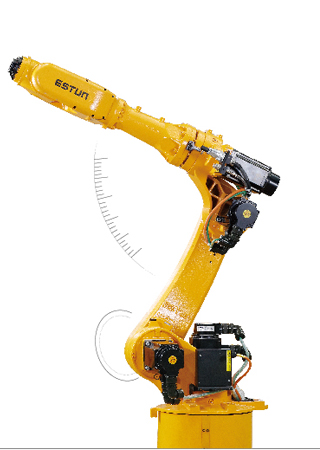

ER12B-1510

ER12B-1510

Small & Medium loading series
  • Loading12KG
  • Wingspan1527mm
  • Repeatability±0.03mm
  • Installtion wayground
  • Weight164KG
  • Protection levelIP54
  • Number of axes6 axes
Inquire this product

Download link

Hollow design
Higher beats and precision
High rigidity and strong operational stability
Easy debugging operation

information overview

Wingspan：1527mm
Repeatability：±0.03mm
Maximum load：12KG
Weight：164KG
Installtion way：ground
Protection level:IP54
Number of axes:6axes

Technical Parameters

Action range
1axes + 170°2axes – 90° ~ +155°3axes – 145° ~ +85°4axes ±200° 5axes ±135°6axes ± 360°
Maximum speed
1axes 242°/s2axes 242°/s3axes 283°/s4axes 480°/s5axes 412°/s6axes 705°/s
*
*
*
