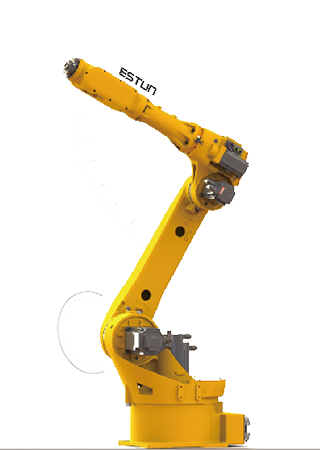

ER35B-1810

ER35B-1810

Small & Medium loading series
  • Loading35KG
  • Wingspan1813mm
  • Repeatability±0.04mm
  • Installtion wayground
  • Weight277KG
  • Protection levelIP54
  • Number of axes6 axes
Inquire this product

Download link

  • ER35B-1810 information
  • ESTUN robot general small load series body instruction manual.PDF
Compact structure
Higher tempo and precision
High rigidity and strong operational stability
Easy debugging operation

information overview

Wingspan：1813mm
Repeatability：±0.04mm
maximum load：30KG
weight：277KG
installtion way：ground
Protection level:IP54
Number of axes:6axes

Technical Parameters

Action range
1axes + 170°2axes – 100° ~ +155°3axes – 160° ~ +86°4axes ±200° 5axes ±130°6axes ± 360°
Maximum speed
1axes 206°/s2axes 206°/s3axes 238°/s4axes 480°/s5axes 330°/s6axes 407°/s
*
*
*
