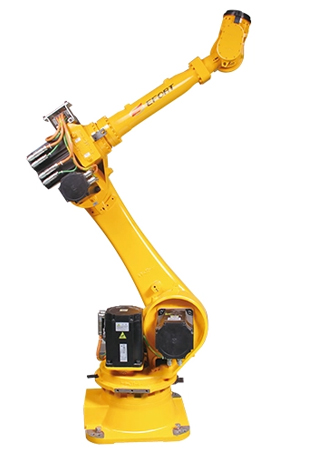

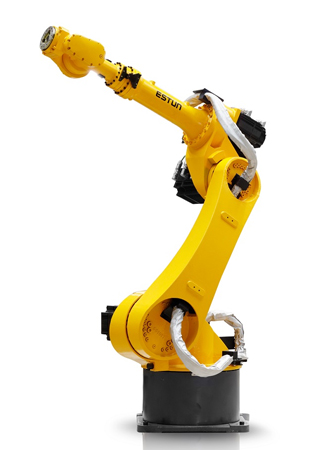

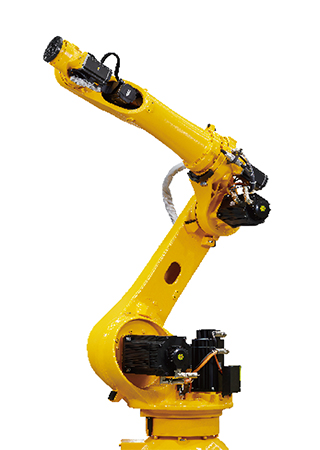

ER50B-2100
ER50B-2100
ER50B-2100
ER50B-2100

ER50B-2100LI

Small & Medium loading series
  • Loading50KG
  • Wingspan2100mm
  • Repeatability±0.05mm
  • Maximum load50KG
  • Installtion wayground
  • Weight530KG
  • Protection levelIP54
  • Number of axes6 axes
Inquire this product

Download link

Motor front design for easy maintenance
Higher beats and precision
igh rigidity and strong operational stability
Easy debugging operation
Loading 50kg
Wingspan 2100mm

information overview

Wingspan：2100mm
Repeatability：±0.05mm
maximum load：50KG
weight：530KG
installtion way：ground
Protection level: IP54
Number of axes: 6axes

Technical Parameters

Action range
1axes + 180°2axes – 90° ~ +135°3axes – 185° ~ +80°4axes ± 200° 5axes ± 130°6axes ± 360°
Maximum speed
1axes 172°/s2axes 119°/s3axes 186°/s4axes 225°/s5axes 254°/s6axes 366°/s
*
*
*
