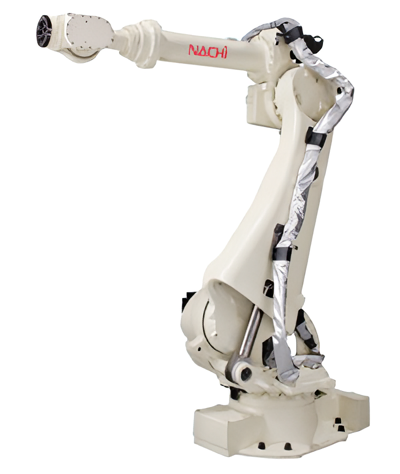

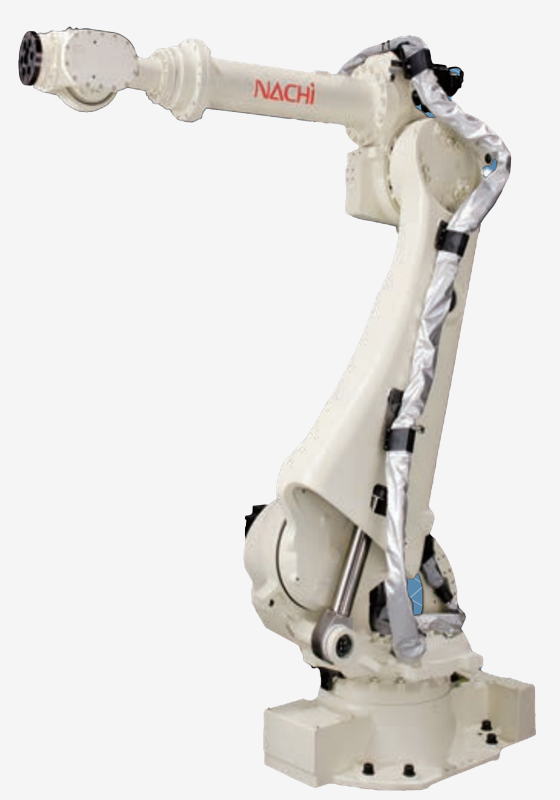

NACHI ( SRA100)

SRA100/166/210/166L/120EL

Multifunctional Robot
  • SpecificationJoint type
  • Number of axes6 axes
  • Body weight960KG
  • Position repeatability±0.1mm
  • Weight that can be carried by the wrist100kg

Download link

  • NACHI detail documents
Robot modelSRA100SRA166SRA210SRA166LSRA120EL
instructurejoint type
number of joint6
drive modeAC servo mode
Maximum working range
(rad[°])
armJ1rotate±3.14 [±180]
J2front&behind+1.05 ~ -1.40 [+60~ -80]
J3up&down+2.62 ~ -2.56
[+150~-146.5]
+2.62~-2.33
[+150~-133.4]
+2.62~-2.23
[+150~-127.7]
wristJ4rotate2±6.28 [±360]
J5bending±2.36
[±135]
±2.27
[±130]
±2.36
[±135]
J6rotate1±6.28 [±360]
Maximum speed
(rad/s[°/s])
armJ1rotate2.37
[136]
2.18
[125]
2.01
[115]
J2front&behind2.36
[135]
2.01
[115]
1.83
[105]
J3up&down2.36
[135]
2.11
[121]
1.97
[113]
wristJ4rotate24.19
[240]
3.14
[180]
2.44
[140]
J5bending4.07
[233]
3.02
[173]
2.32
[133]
3.02
[173]
J6rotate16.31
[351]
4.54
[260]
3.49
[200]
4.54
[260]
Transportable weight
(kg)
wrist100166210166120
arm *145 (max 90)
Allowable static load torque
(N・m)
J4rotate25809511,337951687
J5bending5809511,337951687
J6rotate1290490720490353
maximum allowed
moment of inertia*2
(kg・m2)
J4rotate26088.9141.188.960
J5bending6088.9141.188.960
J6rotate13045794530
Maximum working radius (mm)2,6542,6742,9513,099
Position repeatability *3(mm)±0.1±0.15
ambient temperature (°C)0~45
Set conditionsGround installation, altitude: below 1,000m above sea level
Body weight (kg)960990980985
