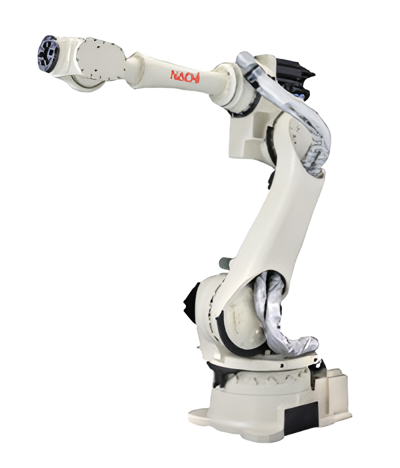

NACHI ( SRA100B)

SRA100B/100J

Compact × High-Performance Robot
  • SpecificationJoint type
  • Number of axes6 axes
  • Body weight690KG
  • Position repeatability±0.1mm
  • Weight that can be carried by the wrist100kg

Download link

  • NACHI detail documents
Robot modelSRA100B-01SRA100J-01
instructurejoint type
number of joint6
drive modeAC servo mode
Maximum working rangearmJ1rotate±3.14rad (±180°)
J2front&behind-2.09 ~ +1.05rad (-120°~ +60°)
J3up&down-2.62~ +3.14rad
(-150°~ +180°)
-2.18 ~ +1.57rad
(-125° ~ +90°)
wristJ4rotate2±6.28rad (±360°)
J5bending±2.36rad (±135°)
J6rotate1±6.28rad (±360°)
Maximum speedarmJ1rotate2.37rad/s (136°/s)
J2front&behind1.92rad/s (110°/s)2.01rad/s (115°/s)
J3up&down2.27rad/s (130°/s)2.79rad/s (160°/s)
wristJ4rotate24.19rad/s (240°/s)
J5bending4.07rad/s (233°/s)
J6rotate16.13rad/s (351°/s)
Transportable weightwrist100kg
arm *125kg (max 45kg)
Wrist allows
Static load torque
J4rotate2580N·m
J5bending580N·m
J6rotate1290N·m
Wrist allows
maximum inertia
Torque *2
J4rotate245kg·m2
J5bending45kg·m2
J6rotate122.7kg·m2
Maximum working radius2,071mm1,634mm
Position repeatability *3±0.1mm
installtion wayground
Set conditions *4Ambient temperature: 0~45°C ※4
Ambient humidity: 20~85%RH (no condensation)
Allowable vibration of the mounting surface: 0.5G (4.9m/s2) or less
Body weight690kg670kg
