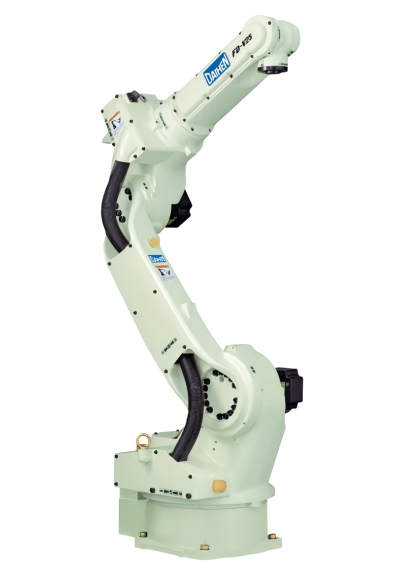

OTC ( FD-V25)

FD-V25

Multipurpose handling robot
  • Specificationvertical multi-jointed
  • Number of axes6 axes
  • Maximum transportable weight25KG
  • Position repeatability±0.07mm
  • Driving methodAC servo motor
  • Drive capacity5600W

Download link

ModelFD-V25
Number of axes6 axes
Loading25kg
Repeatability±0.07mm
Drive capacity5600w
Action rangebasic axis J1±170°(±50°)
basic axis J2﹣155°~﹢100°
basic axis J3﹣170°~﹢260°
basic axis J4±180°
basic axis J5﹣50°~﹢230°
basic axis J6±360°
最大速度basic axis J13.40rad/s{195°/s}(3.05rad/s{175°/s})
basic axis J23.32rad/s{190°/s}
basic axis J33.14rad/s{180°/s}
basic axis J46.98rad/s{400°/s}
basic axis J56.98rad/s{400°/s}
basic axis J610.47rad/s{600°/s}
Maximum speedAllowable torque J452.6N·m
Allowable torque J552.6N·m
Allowable torque J624.5N·m
Allowable torque J41.24kg·m²
Allowable torque J51.24kg·m²
Allowable torque J60.33kg·m²
Robot action range cross-sectional area5.27m²
Ambient temperature and humidity
Body weight278kg
3rd axis load capacity25kg
Installation wayGround/side-mounted/hanging
