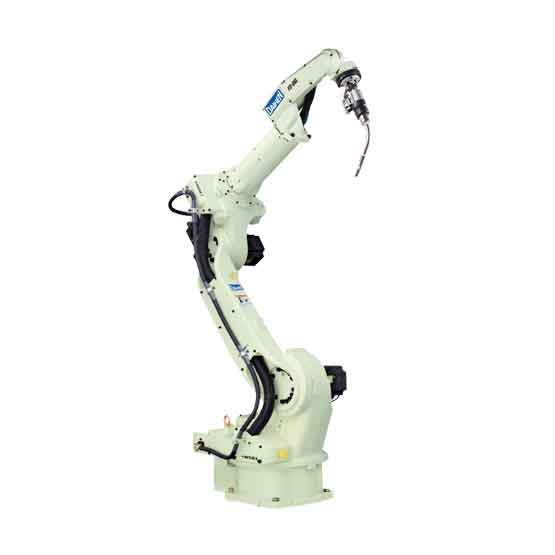

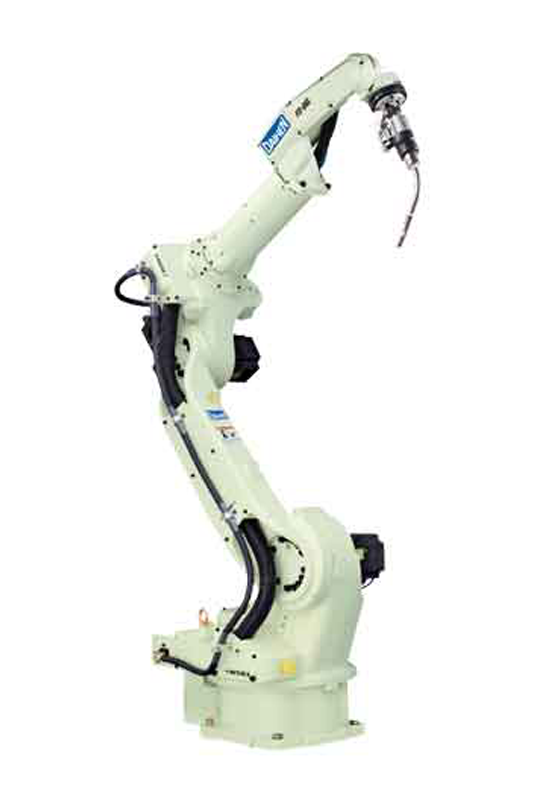

OTC ( FD-B6L)

FD-B6L

Suitable for welding with built-in cable
  • SpecificationVertical multi-joint
  • Number of axes6 axes
  • Maximum transportable weight6KG
  • Position repeatability±0.08mm
  • Driving methodAC servo motor
  • Drive capacity4832W

Download link

  • related video
  • OTC robot sample information
ModelFD-B6L
Number of axes6 axes
Loading6kg
Repeatability±0.08mm
Drive capacity4832w
Action rangebasic axis J1±170°(±50°)
basic axis J2﹣155°~﹢100°
basic axis J3﹣170°~﹢190°
arm axis  J4±155(±170°)
arm axis  J5﹣45°~﹢225°
arm axis J6±205(±360°)
Action rangebasic axis J13.40rad/s{195°/s}(3.05rad/s{175°/s})
basic axis J23.49rad/s{200°/s}
basic axis J33.49rad/s{200°/s
arm axis J47.50rad/s{430°/s}
arm axis J57.50rad/s{430°/s}
arm axis J611rad/s{630°/s}
Load capacity
Allowable torque J4
10.5N·m
Allowable torque J510.5N·m
Allowable torque  J65.9N·m
Allowable moment of inertia J40.28kg·m²
Allowable moment of inertia J50.28kg·m²
Allowable moment of inertia J60.06kg·m²
Robot action range cross-sectional area6.37m²x340°
Ambient temperature and humidity
Body weight278kg
Upper arm load capacity20kg
Installtion wayGround/side-mounted/suspended
